5mm Slim Edge 3 Drawer Steel Filling Cabinet Nature Style 3 Metal Handles

Product description:

This three-drawer filling cabinet is one of our best-selling products , which is widely used in office . As one convinient storage , with mordern appearence and strong construction , which is very popular with young office worker . The standard size is W420*D500*H725MM, other size can be customized based on the office size. Lock is on the first drawer, interlock. For the drawer front, you could choose wood material as alternative. Delivery time is about 20-30 days for 1x40HQ, MOQ is 388pcs each one. Any RAL color is available. The quality warranty is 5 years.

​Product advantage:

• capacity: 35 kgs per drawer
• 3 section ball slideway,fully open
• Suit for,Legal file and Letter file
• Cyber/Wangtong Folder lock
• Zinc alloy handles

Products Information:

Picture on exhibition:

Detail Display

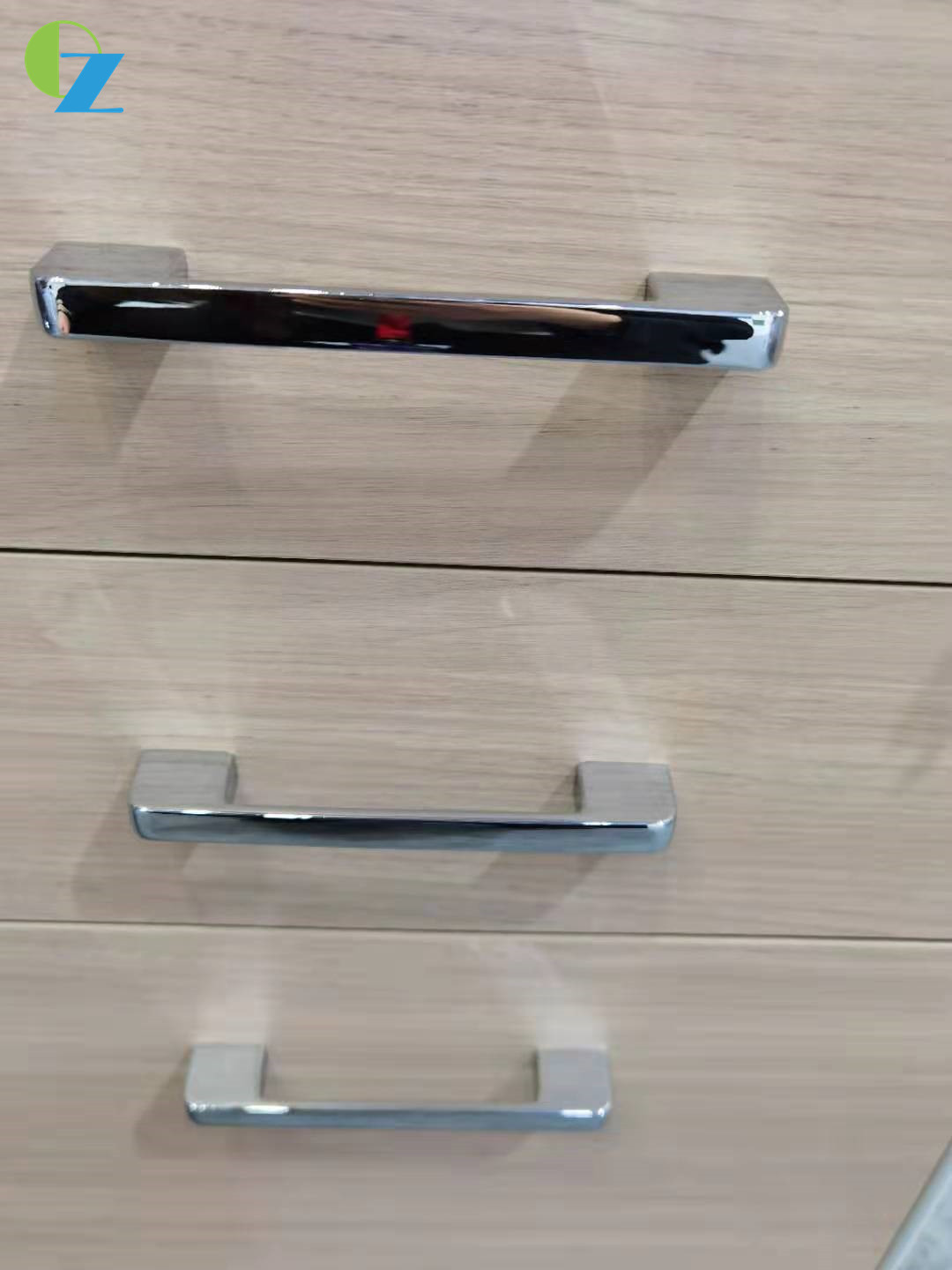

1. Zinc alloy handles

2. Metal connectors , can be well fixed with desk .

3. Slim edge, beautiful design .

Color choice:

Raw material:

Our raw materials is SPCC from HBIS, this steel sheet has a uniform thickness and a smooth surface that contributes to later bending, painting and prolong the use life of products. The thickness tolerance is only minus 0.02MM.

The raw materials used in traditional factories are steel strips. The thickness error is large. The error is 20 filaments (0.2mm), the surface will appear wavy lines and resulting in errors in bending angles, and the surface is uneven after painting and will cause product quality instability.

When it comes to the weight, the strip has a large error and the actual weight is much smaller than the theoretical weight, so the actual cost will be much smaller.

We can guarantee the stability of the product from the source.

Powder:

We use Leka powder. Its powder passed the inspection and certification of SGS. The content of heavy metals and carcinogens does not exceed the standard.

The front is impacted with a 50kg cone-shaped film impactor, and the opposite side is impacted with a 30kg cone-shaped film impactor. There will not appear any cracks. Thus it can be seen that our powder has strong adhesion.

Commonly cabinets on the market will generally have surface bumps and off-powder in three to five years. These are all indications that the adhesion of powder is not strong.

The color fastness of the Leka powder is lasting. By testing, the indoor powder can stay in the sun for 500-700 hours without discoloration. And the outdoor powder can stay in the sun for up to 1200-1500 hours. Most of the steel furniture is used in the indoor powder.

We use the powder for cabinet is 3-5 yuan higher than traditional one.

Lock:

Our locks basically use the Cyber lock, Wangtong look and Lusterful lock,they are 1000 mutual open (refer to the 1000 different locks can not open each other, the market is generally 200 mutual open), which greatly enhances the privacy and confidentiality of the office.The lock cylinders are made of zinc alloy and copper. Some factory use plastic cylinders. Both the cylinder of Cyber lock and Wangtong can be replaced so that if the key is lost, the master key can be used to open and replace the lock cylinder. 1000 mutual open locks are 1 yuan higher than 200 open ones.

Slide way:

Our slides use the high-quality three-section slides of Guangdong Judetai, which can meet European and American standards. The thickness of its three-section slides is 1.2*1.2*1.0, and its material is carbon steel. By testing, it can pull 50,000 times under dynamic load 25kg.

Luoyang Ouzheng Trading Co., Ltd is founded in 2003, which is who-owned subsidiary of Henan Fuyide Industrial Co., Ltd.

At present, the factory covers an area of 50, 000 m³ with more than 300 employees and almost 20 senior engineers.

We have established long-term cooperation with high quality raw material suppliers, has stable high-quality raw materials supply channels, such as cold rolling steel plate and environmental epoxy resin powder to ensure product quality from the source.

Besides, We have the latest automatic NC decoiling line, CNC punching machine,advanced laser cutting equipment, imported Salvagnini P4Xe Automatic panel bender from Italy,automatic welding by robot; laser welding equipment, automatic spray coating lines, automatic packaging equipment and other advanced equipment etc.

We had imported advanced Salvagnini P4Xe Automatic panel bender from Italy. The equipment can improve the accuracy and ensure product consistency with reliable property . A pair of universal bending mold, which can finish most of the bending without being replaced. Besides, it can process the parts of which the length is up to 2500mm,the width is up to 1500mm and the range of the thickness is from 0.5mm to 2.0mm.this machine can process one part within 30 seconds to fulfill the capacity of diversified production.

The factory is specialized in steel filing cabinet, steel locker, cupboard, mobile pedestal, office desk, book shelves, goods rack etc with customers around the world. The products have advantages of strong structure, fashionable appearance, guaranteed quality, which is your best office partner. We've passed ISO9001:2008 international quality management system certification and ISO14001:2004 environment management system certification.

In addition, before the production, QC shall test the toughness, flatness, thickness of steel plates, and ensure plate size error is within the allowable range, surface is smooth and free from concave and burr. Then, workers shall fill in process card then will move to the following procedure of laser cutting .The workers will produce according to the operating instructions and drawings strictly to guarantee the accuracy of side cutting and punching.,which the tolerance is within 0.1mm.

Before packaging, QC will overall check the whole structure, surface and parts.,etc by pre- assembly. At packaging, workers must strictly follow export transportation standard to do package and make sure the quantity of parts are correct and the layout is suitable and firm.

Our products are exported to Europe, America, Australia, Canada, Southeast Asia, Oceania and other countries, the products are subject to a great welcome and praise.

Every year we will participate in various exhibitions both at China and abroad, including guangzhou CIFF Fair in March, Shanghai CIFF Fair in September, and Cologne ORGATEC Exhibition in Germany, which make us make continuous progress and broaden our horizon.

We are experts in office furniture solution.
